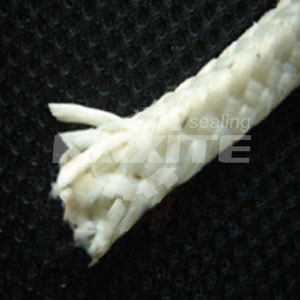

Glass Fibre Braided Packing
Description:Glass fibre packing is braided with high quality E-glass fiber without ant impregnant.It is braided without any flammability component.Usually,it's staticc sealing packing.Glass fibre packing has many excellent capabilities of high strength and high temperature resistance, low density and low thermal conductivity,better insulation and incombustible etc.
Main Specification:
|
Temperature |
-40℃~+680℃ |
|
Pressure |
10MPa |
|
PPH Range |
2-12 |
|
Linear Speed |
12M/S |
|
Size |
3*3mm-80*80mm（or as request） |
Glass Fibre Packing Impregnated PTFE KXT-P1712：
Glass fiber can also be impregnated with PTFE.Glass fibre packing with PTFE is largely prevents solids from entering the seal and maintains its elasticity. Glass fibre packing with PTFE is suitable for pump and valves.
Main Specification:
|
Temperature |
<280℃ |
|
Pressure |
2-20MPa |
|
PH Range) |
0-14 |
|
Linear Speed) |
2-8M/S |
|
Size |
3*3mm-80*80mm（or as request） |
How to Order:
|
Item |
Order Code |
|
Glass Fibre Braided Packing |
KXT-P1710 |
|
Graphited Glass Fibre Packing |
KXT-P1711 |
|
Glass Fibre Packing Impregnated PTFE |
KXT-P1712 |
For more information,please contact with us directly,thanks！
