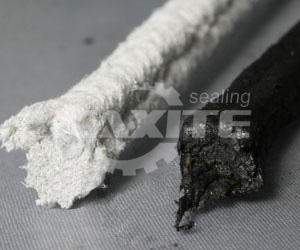

Ceramic Fibre Braided Packing
Description:Ceramic fibre packing is braided with high quality ceramic fiber without ant impregnant.It is braided without any flammability component.This kind of gland Packing is staticc sealing packing.Ceramic fibre packing has many excellent capabilities of high strength and high temperature resistance, low density,low thermal conductivity,better insulation,incombustible,etc.Usually,It can be impregnated with graphite latex.This kind of graphite ceramic fibre packing is used in sealing of high temperature and high pressure.It can be reinforced with stainless steel or glass fibre.This will make much improvement to Ceramic Fibre Packing.
Main Specification:
|
Temperature |
800℃~1260℃ |
|
Pressure |
3-20MPa |
|
PH Range) |
3-14 |
|
Linear Speed) |
12M/S |
|
Size |
3*3mm-60*60mm（or as request） |
For more information,please contact with us directly,thanks！
Ceramic packing with graphite impregnation
Item No.:KXT-P1721
Description:Ceramic packing with graphite impregnation is square braided from ceramic fiber impregnated with graphite. Normal for valves and static seal under supper high temperature.
KXT-P1721R Graphited Ceramic packing with Nickel wire is ceramic packing reinforced with Inconel or SS or Nickel wire and lubricated by graphite.
APPLICATION:As a static seal for vessels, heaters, manhole, lids, covers, thermal insulation and fire-proof of pipes etc under high temperature. Suited for chemically neutral and resistant to water, steam, hot air, oils and so on.
Main Specification:
|
Temperature |
850℃ (with fibreglass),1050℃(with wire) |
|
Pressure |
3-20MPa |
|
PH Range) |
5-9 |
|
Size |
3*3mm-60*60mm（or as request） |
For more information,please contact with us directly,thanks！
